Roll-to-Roll Coater
The roll-to-roll coating system offers precise coatings for a wide variety of materials and applications. With its flexible configuration and high adaptability, it is ideally suited for industrial sectors such as batteries, displays, glass, fuel cells, solar cells, and pharmaceuticals. Discover the possibilities of our innovative coating technology!

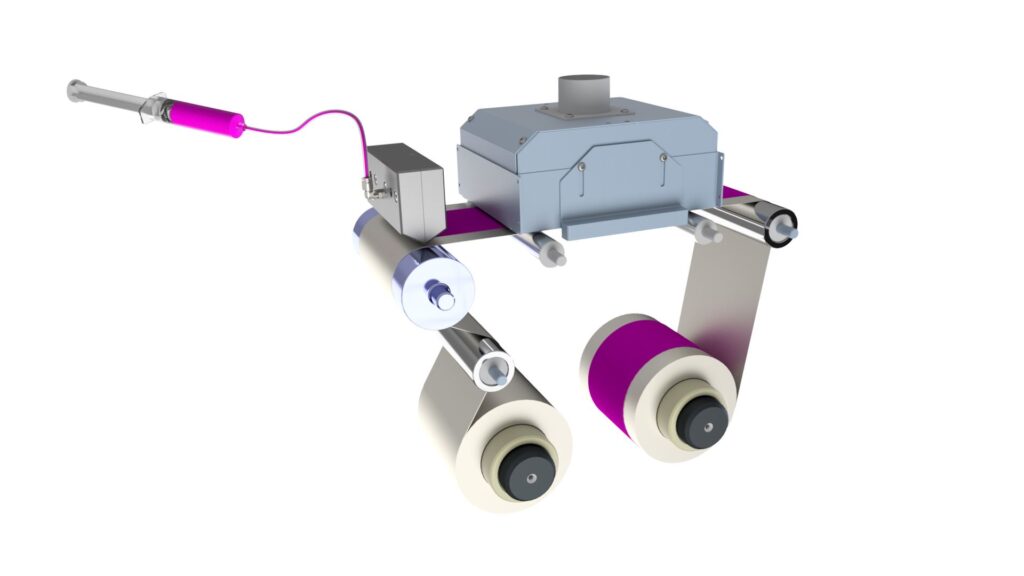

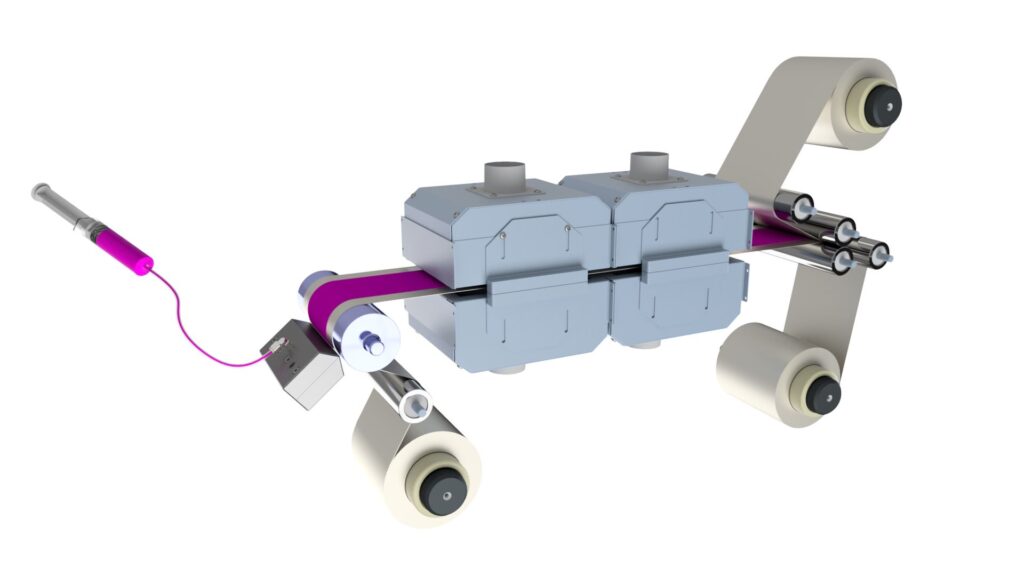

Roll-to-Roll Coater
Compact and precise
The roll-to-roll coater is the perfect choice for scalable coating applications. This machine enables precise coatings in the micrometer range on rigid and flexible substrates, ideal for daily experimental use. With a coating width of 300 mm, the coater can also be equipped with heavy, high-precision slot dies.
Key features and technical specifications
- Non-contact coating in the micro range for a uniform dry film thickness of up to 1µm.
- Variable coating width from 1mm to 300mm.
- Slot dies with variable coating positions (infinitely adjustable).
- Intermittent coating.
- Wet-on-wet coating with a second slot head.
- Laterally adjustable slot die.
- Quick and easy cleaning position.
- High-precision and simple coating gap adjustment.
- Squeegee coating.
- Interchangeable dryers in: hot air dryers, IR dryers, UV dryers.
- Coating lengths when combined with stretch coater: 1000mm.
- Designed for a wide variety of liquids with excellent substrate flatness.
- Integrated vacuum plate for fixing the coating materials when combined with a stretch coater.
- Enclosure with additional extraction.
- Recording of high-precision heavy slot-die.
- Heated slot nozzle and heated vacuum table (when combined with the stretch coater).
- Adjustable lamination.
- Unwinder, laminating film unwinder, rewinder.
- Web edge control, web tension control, web speed control.
- Also available as an ATEX version for use with solvents.
- Touch display with intuitive operation.
- Slot-die temperature control: Up to 80 °C
- Coating speed: 0.02 m/min to 4.0 m/min
